Superior LT

Superior LT is a manifold for underfloor heating. It is compatible with the pump and additional equipment.

The set consists of:

• 2 pcs. tubes with 2-18 loops
Flow/return line:
• 2-18 pcs. eurocone connection ¾”
• 2-18 pcs. Flow meters (top meters) with memory function. Hydraulic preset values remain after closing and opening the heating circuit. Visible scale 0-5 L/min.
• 2-18 pcs. thermostatic valve, M30x1.5 protective cap
• 2 pcs. tube brackets – wall mounted, galvanized, sound insulated

Tmax
90°C
p max(test)
10 bar
p max operating
6 bar
H2O
100%
Glycol
max 50%

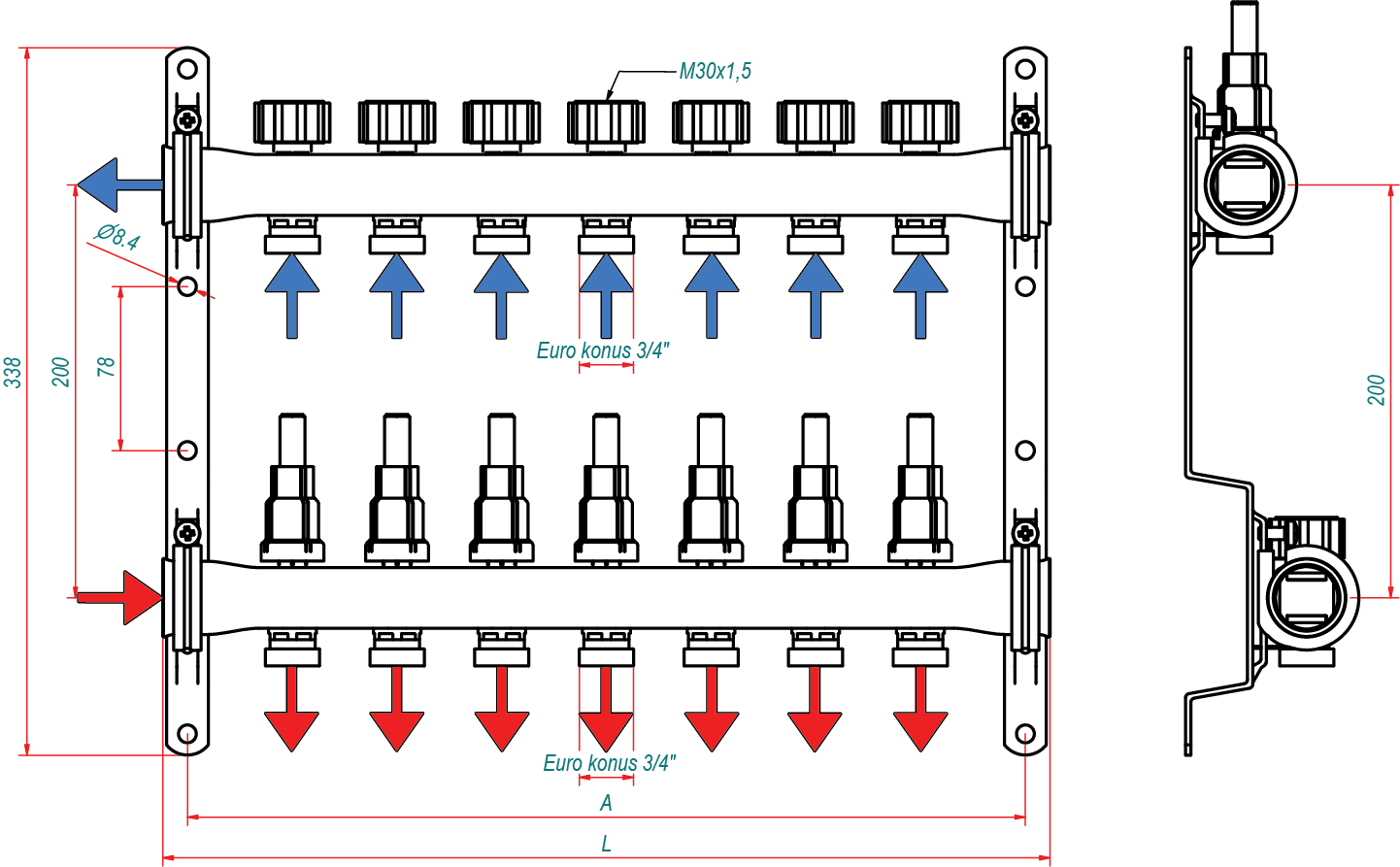

Code
Article Name
L (mm)
A (mm)
2-SUP-LT-00-00
Manifold Superior LT - 2 circles
150
125
3-SUP-LT-00-00
Manifold Superior LT - 3 circles
200
175
4-SUP-LT-00-00
Manifold Superior LT - 4 circles
250
225
5-SUP-LT-00-00
Manifold Superior LT - 5 circles
300
275
6-SUP-LT-00-00
Manifold Superior LT - 6 circles
350
325
7-SUP-LT-00-00
Manifold Superior LT - 7 circles
400
375
8-SUP-LT-00-00
Manifold Superior LT - 8 circles
450
425
9-SUP-LT-00-00
Manifold Superior LT - 9 circles
500
475
10-SUP-LT-00-00
Manifold Superior LT - 10 circles
550
525
11-SUP-LT-00-00
Manifold Superior LT - 11 circles
600
575
12-SUP-LT-00-00
Manifold Superior LT - 12 circles
650
625
13-SUP-LT-00-00
Manifold Superior LT - 13 circles
700
675
14-SUP-LT-00-00
Manifold Superior LT - 14 circles
750
725
15-SUP-LT-00-00
Manifold Superior LT - 15 circles
800
775
16-SUP-LT-00-00
Manifold Superior LT - 16 circles
850
825
17-SUP-LT-00-00
Manifold Superior LT - 17 circles
900
875
18-SUP-LT-00-00
Manifold Superior LT - 18 circles
950
925

Pre-installed on brackets

Labeled and packed in carton

Enclosed installation instructions

Leakage tested using air
